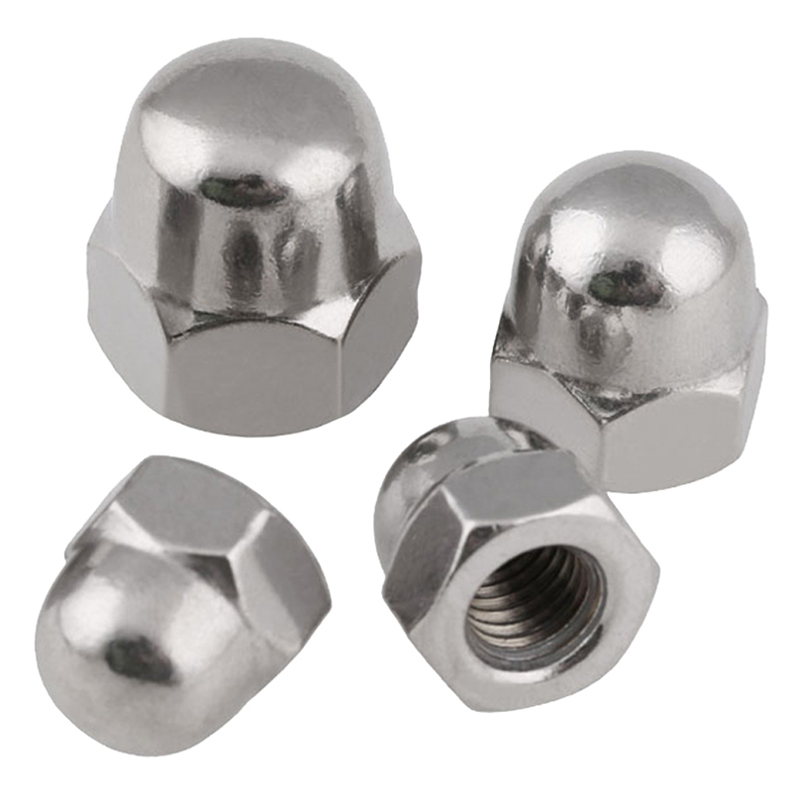

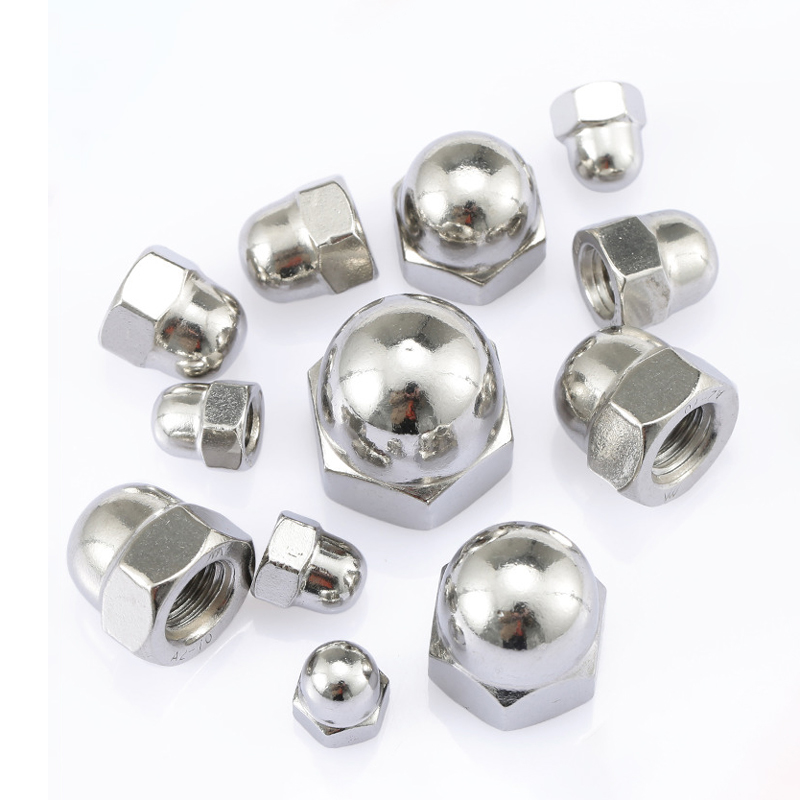

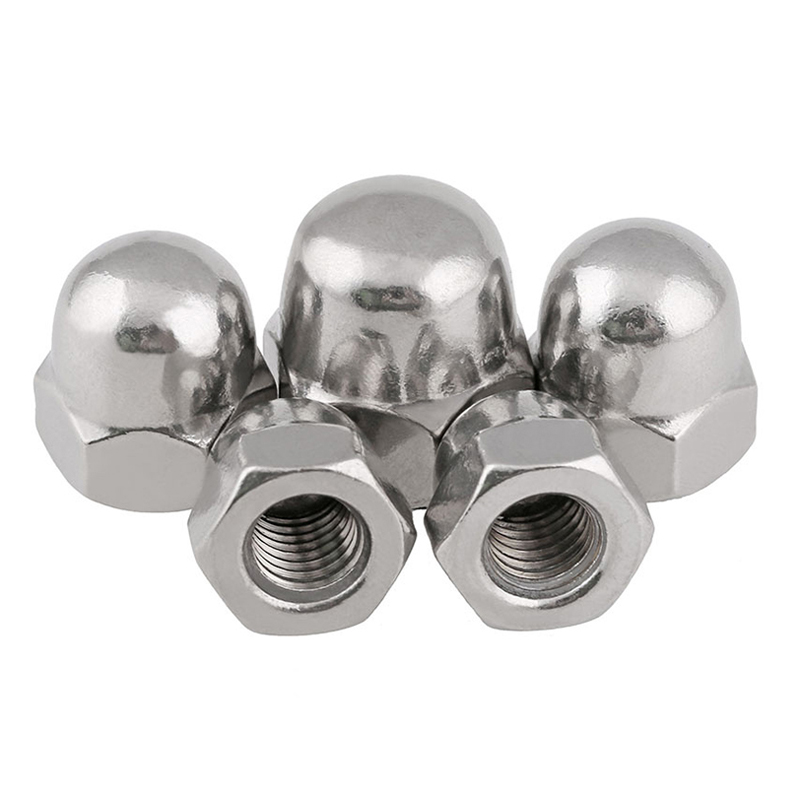

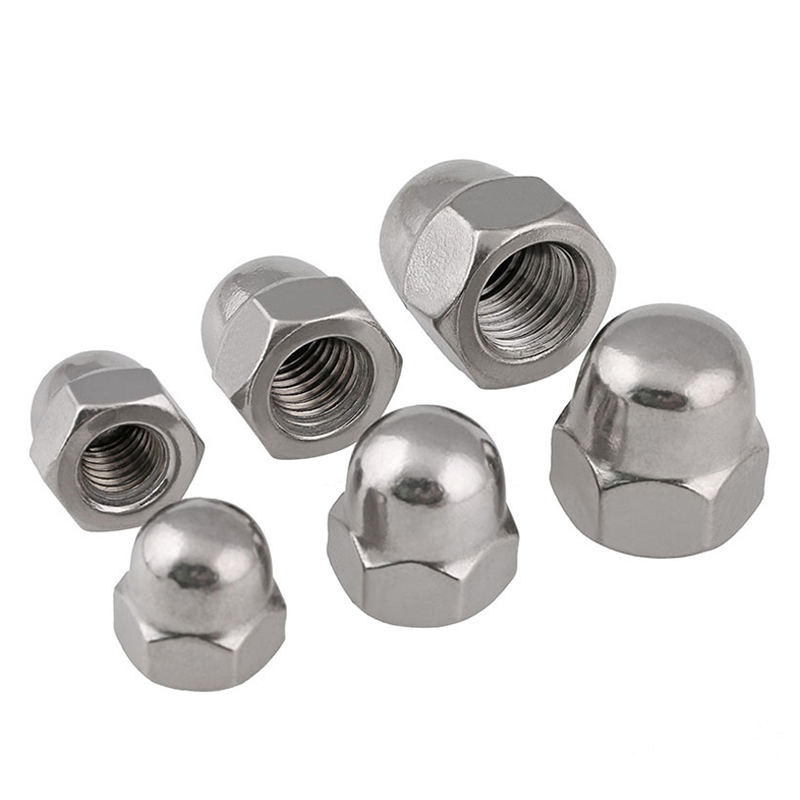

metric SS316 stainless steel hexagon cap nut 1 pcs
$0.0288
Thread Type: metric Material: SS316 stainless steel Fastener nut type: hexagon cap nut
d |
P |
K |
h |
s | |
| max | min | ||||
| M3 | 0.5 | 2.5 | 6 | 5.5 | 5.32 |
| M4 | 0.7 | 3 | 7 | 7 | 6.78 |
| M5 | 0.8 | 4 | 9 | 8 | 7.78 |
| M6 | 1 | 5 | 11 | 10 | 9.78 |
| M8 | 1/1.25 | 6 | 15 | 13 | 12.73 |
| M10 | 1/1.25/1.75 | 8 | 18 | 17 | 16.73 |
| M12 | 1.25/1.5/1.75 | 10 | 22 | 19 | 18.7 |
| M14 | 1.5/2 | 11 | 24 | 22 | 21 .67 |
| M1 6 | 1.5/2 | 13 | 26 | 24 | 23.67 |
| M20 | 1.5/2/2.5 | 16 | 32 | 30 | 29.16 |
