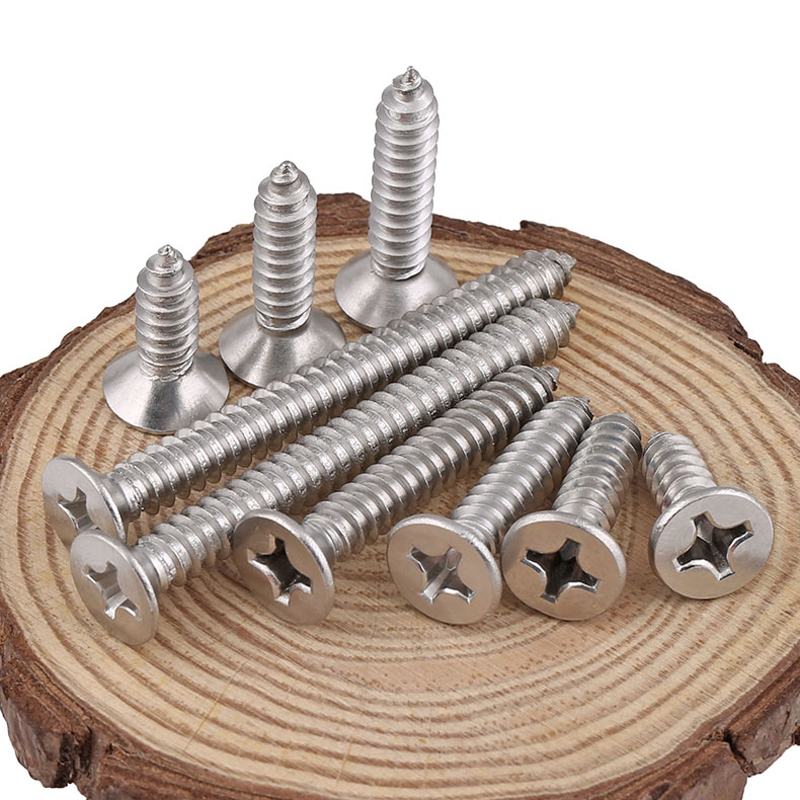

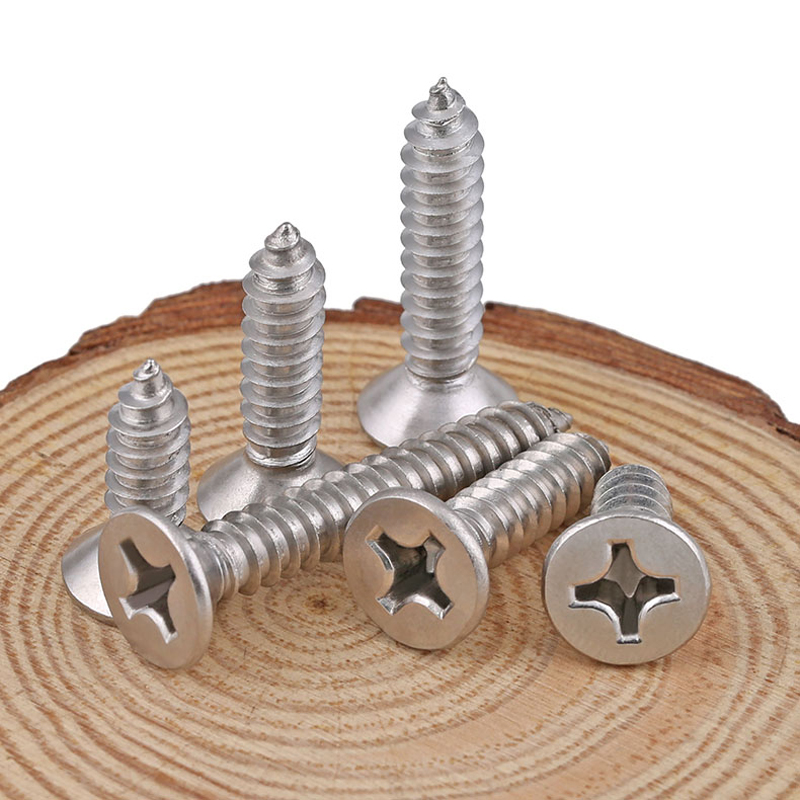

metric SS316 stainless steel cross countersunk head tapping screw 1 pcs
$0.0088
Thread Type: metric Material: SS316 stainless steel Threading: fully threaded Fastener screw type: cross countersunk head tapping screw
| d | M1 | M1.2 | M1.4 | M1.7 | M2 | M2.2 | M2.6 | M3 | M3.5 | M4 | M4.2 | M5 | M6 | M8 |
| dk | 1.75 | 1.82 | 2.5 | 3.27 | 3.7 | 3.98 | 4.2 | 5.3 | 6.5 | 7.2 | 7.6 | 8.7 | 11.8 | 14.1 |
| k | 0.65 | 0.7 | 0.8 | 1.13 | 1.21 | 1.3 | 1.6 | 2 | 2.5 | 2.6 | 2.7 | 3 | 4.75 | 5.2 |
| degree | 90° | |||||||||||||
